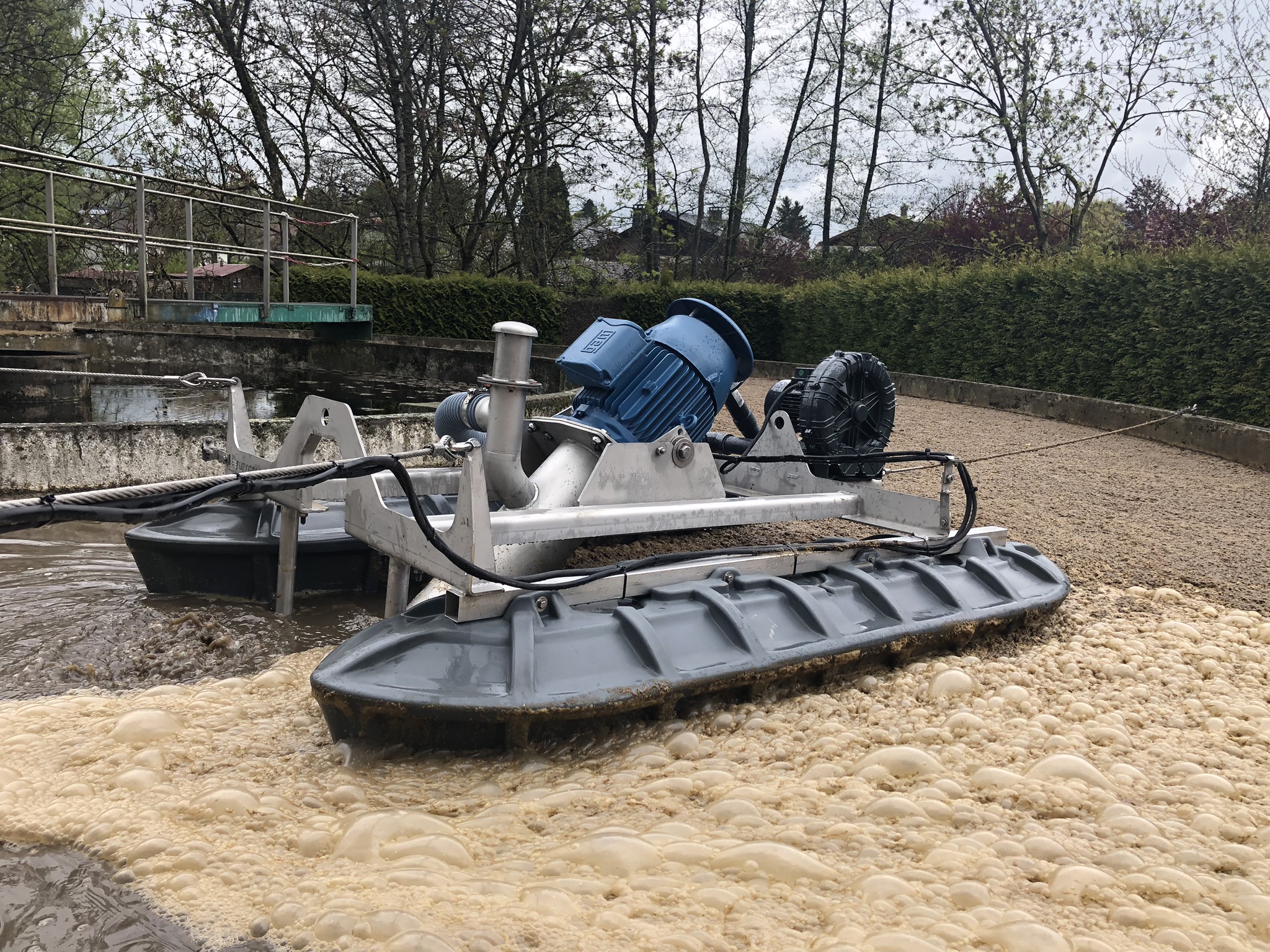

Aquaeromix

Inclined shaft aerator

The Aquaeromix provides a dual function of directional flow and mixing of oxygen into the wastewater. The Self Aspirating Aerator has a unique impeller and hollow shaft design to draw air below the water surface.

The Aquaeromix mixes the air into the water and produces fine to medium sized bubbles. The pumping effect of the impeller provides a directional flow. The rotating impeller generates an underpressure, which creates a vacuum in the tube and draws in air from outside.

The mixing flow of the impeller drives the bubbles towards the base of the lagoon.

The aerator is inclined in relation to the water level and its axial thrust generates a flow that favors circulation and prevents dead zones plus ensures effective treatment.

Applications

Designed for both industrial and municipal applications
Ideal for use in lagoons and equalization basins

Advantages

Surface mounted Motor IP 56 protection
Direct drive motor mounted on the framework between two floats
Materials of construction: AISI 304/316 or special stainless steel
Robust + compact design + fully balanced
Minimal vibration of the screwpeller® as fully balanced
Non-clogging impeller with protective housing
Robust and compact design
Floats manufactured in polyethylene filled with pur foam
Directional aeration + mixing
No aerosol
Minimal maintenance: greased for life electrical surface motors and no mechanical seal and few moving parts
Floating, wall, bridge mount assembly
Can operate in fixed or variable water levels
Ergonomic floats design with minimal hydraulic resistance
Minimal vibration of the Screwpeller® as fully balanced
Easy to install & remove from any tank or lagoon
Simple with minimal maintenance
Compact solution keeps solids in suspension and reduces any dead zones
Installation possible in full basin without interrupting the treatment process
Floats filled with pur foam improving reliability and security
From 5.5 to 22 kW

Options

The entire range exists in two types: self aspirating and with a blower added to increase performance
The units exist in both floating and fixed execution
Housing mounted vortex shield
